Production Description:

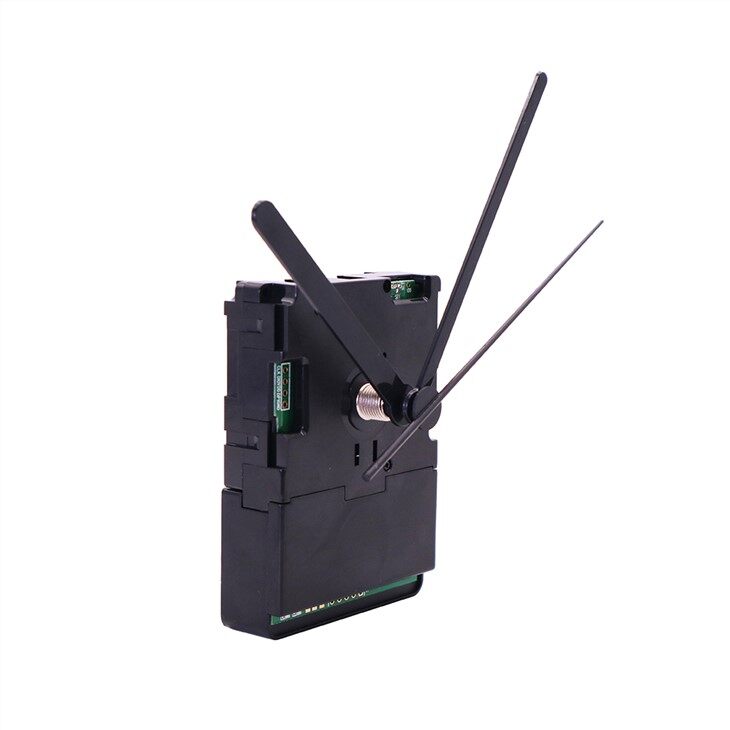

CH899 14.5mm Wifi Controlled Clock Movement
| Place of Origin: | Guangdong, China |
| Brand Name: | Hengrong |
| Product Name: | Wifi clock movement |
| Material: | quartz |
| MOQ: | 10PCS |
| Color: | black |
| Battery: | AA Battery (not Included) |
| Battery Life: | approx one year |
| Style: | Wifi controlled |
| Function: | Shaft Movement |

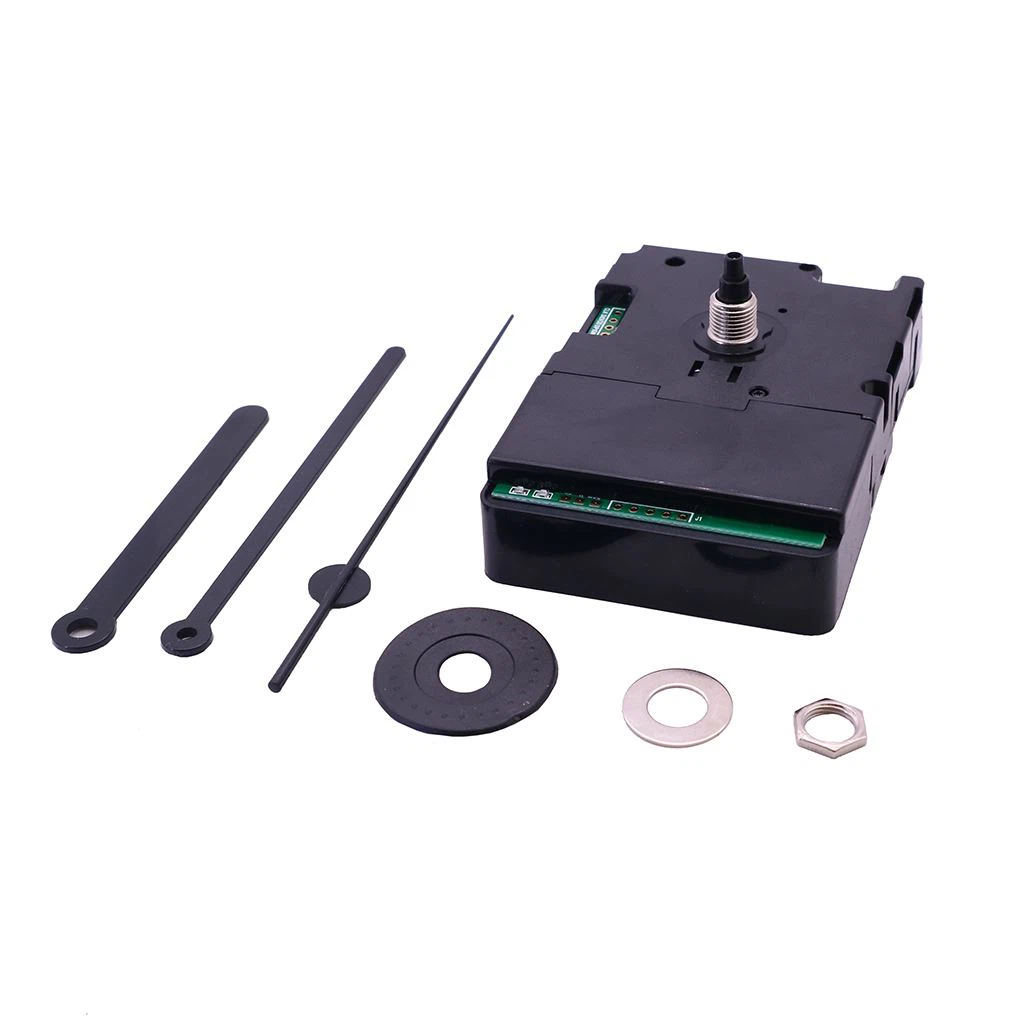

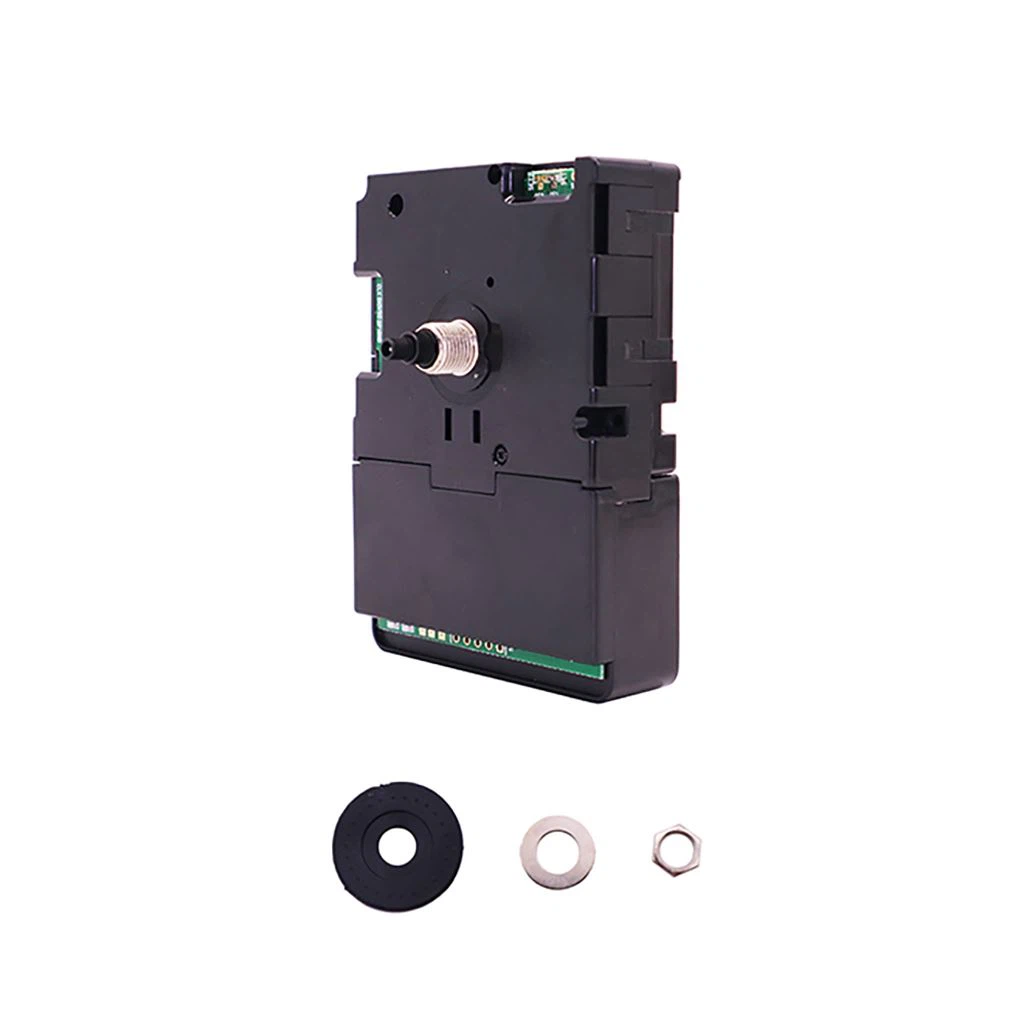

1x black rubber pad, 1x washer, 1x nut, 1x instruction manual
Quick Details:
| Place of Origin: | Guangdong, China Brand Name: Hengrong |
| Product Name: | CH899 14.5mm Wifi clock movement |
| Material: | quartz |
| MOQ: | 10PCS |
| Color: | black |
| Battery: | AA Battery (not Included) |
| Battery Life: | approx one year |
| Style: | Wifi controlled |
| Function: | Shaft Movement |
| Certificate: | CE RoHS |
Movement size: 79.5*56*18.5mm
Movement shaft length: 14.5mm,
thread height 7mm,
suitable for 1-3mm thick clock panels Pointer

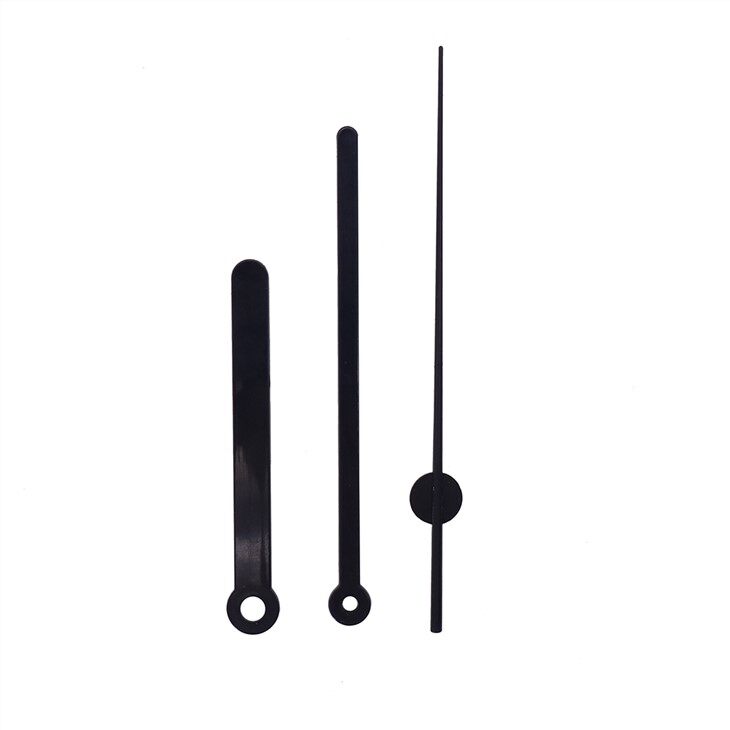

Hand Size: Measured from the center hole to top .
10#+21# Plastic Hand : Suitable for 210mm diameter clock face
Hour Length : 64MM
Minute Length : 88MM
Second Length : 81MM
HR9403+903 Aluminum Clcok Hand : Suitable for 240mm diameter clock face
Hour Length : 68MM
Minute Length : 98MM
Second Length : 100MM
HR9865+903 Aluminum Clcok Hand : Suitable for 280mm diameter clock face
Hour Length : 90 MM
Minute Length : 120 MM
Second Length : 100MM
Operating instructions：
● ● ● ● ●Setting the connection time for the first time ● ● ● ● ●
Step 1: Install two batteries (more than 2.7 volts), turn on the WIFI quickly for about 10 seconds,
and then automatically turn on the WIFI for 2 minutes (the pointer will be turned on at 12 o'clock and theWIFI will be turned on again for 2 minutes)At the same time, the red signal light on the backof the movement flashes.

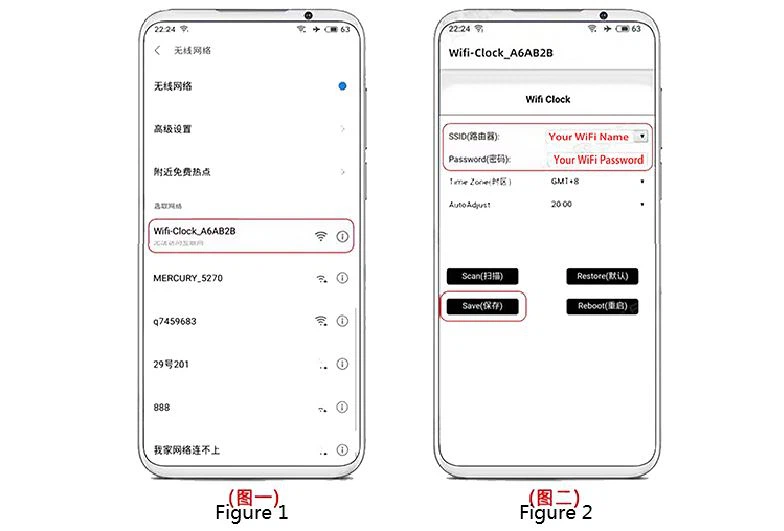

During this period, turn on the mobile phone WLAN, find and click WIFI(Wifi- Clock. A6AB2B) in the list. Different movements have different sufix names (see Figure 1)
Step 2: After ciking, the phone will automatcally pop up the seting inerface (see Figure 2)
Enter the WIFI account number, password, time zone, and automatic time adjustment time in the stting interface.
After the stting is completed and confirmed without errs, click Save. The setting interfaceclosesses atmatcally and the mะ movement is automatcally networked to complete
s adjustment (network acquisition time takes about 15 seconds. The blue signal light flashes when the pointer starts chasing)
● ● ●Since the openness of different smartphone applications is not limited,you may need to do this ● ● ●
The setting interface will not pop up automatically, but there will be a notification in the notification bar prompting that the phone and the movement are connected.
The setting interface will pop up automatically after being directly clicked in the notification bar.
The mobile phone shows that it is connected to the movement, but the setting interface will not pop up automatically,and there will be no notification prompt in the notification bar. This requires opening the mobile phone browser,entering 192.168.4.1 in the URL input field, and then clicking Enter to confirm. The settings will pop up automatically. interface.After setting is complete, click Save. Some brand phones will not automatically close the setting interface, and close the connection manually on the phone side.

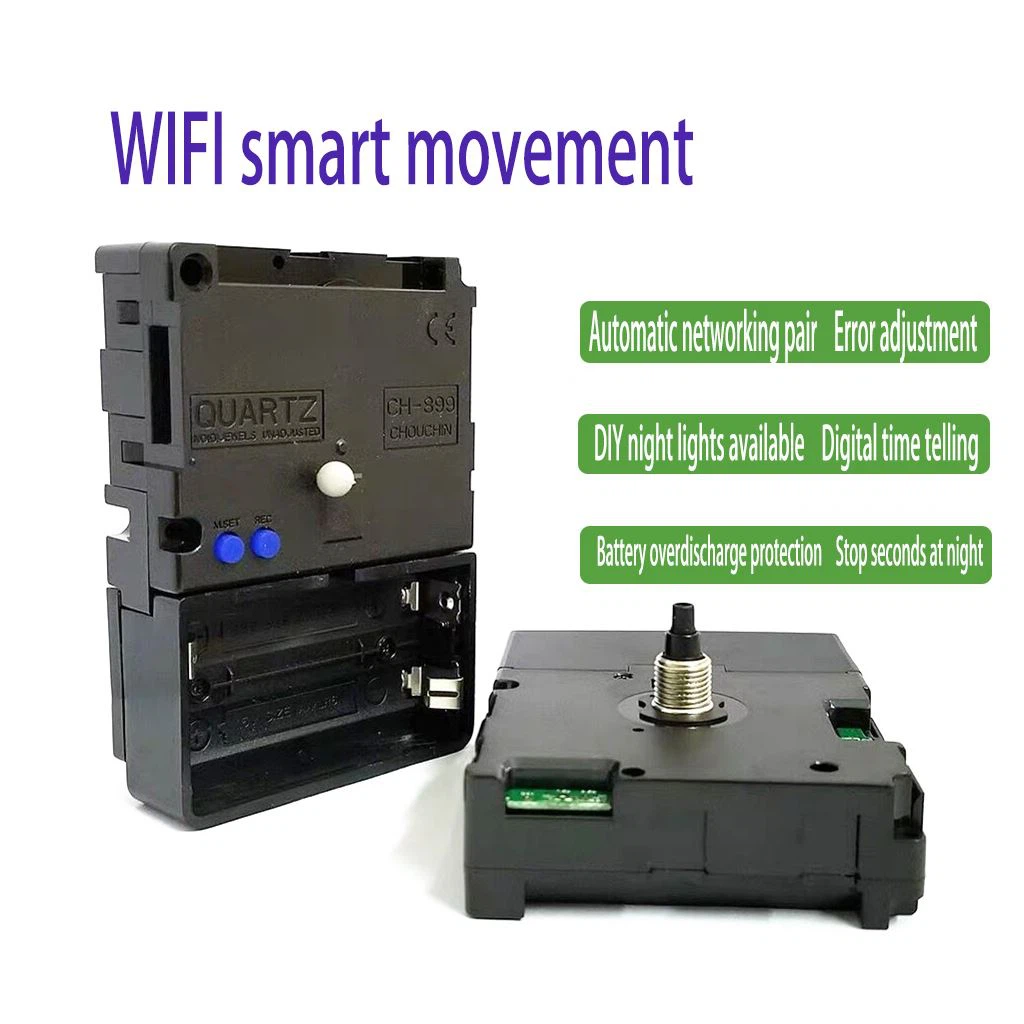

The operation manual of smart WIFI movement
Parameter details：

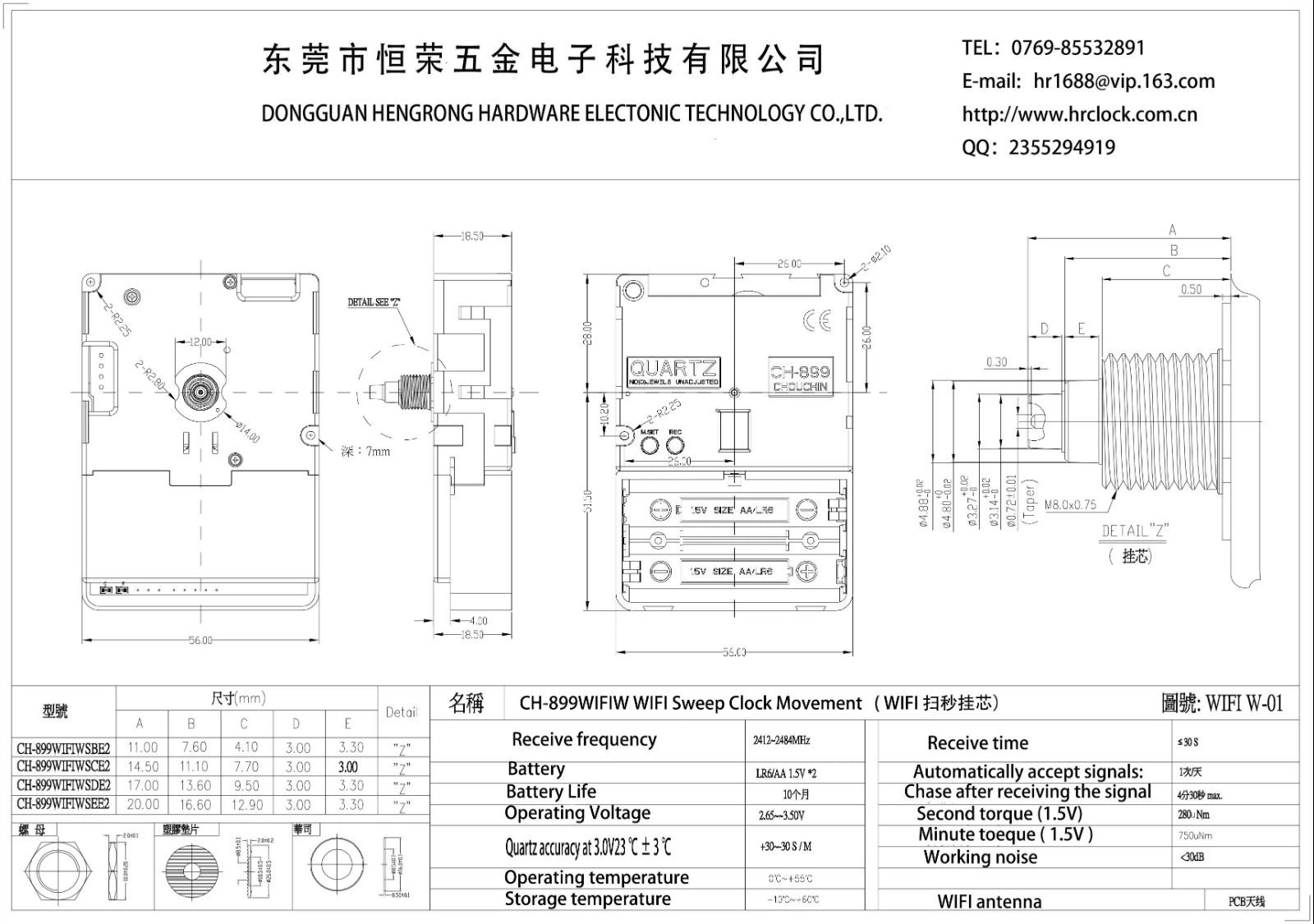

WIFI movement internal structure drawing data, parameter details preview diagram
Company informations :
● Dongguan Heng Rong Electronics Technology Co., Ltd. is an OEM manufacturer of wall clocks and various clock-related parts and assemblies.
● The company was established in December, 1999 and from day one, we have been committed to our production resources and technological expertise to offer high-quality and fresh designs of timepieces to our clients.
● Dongguan Heng Rong Hardware Electronic Technology Co., Ltd. is a professional manufacturer of clock accessories/quartz clock movements/clock heads/rotating movements and quartz wall clocks, as well as thermometers. Our products are mainly sold to many developed countries and regions such as USA, UK, Germany and Korea.
Overseas customers take a group photo
our Services
1) We are a Gold Supplier for 11 years as assessed by Alibaba.
2) We are the factory manufacturer of most products; competitive price
3) We have our own brand HR1688, and high quality clock movement with 2000 models of clock hands.
4) Have a wide range of clock parts for you to choose from, total items over 1000 items, including clock movement, clock hands, clock inserts, clock dials, clock numbers, etc.
FAQ
Q. What is the MOQ ?
A. 10 pcs for stock items, small quantity also acceptable .
Q .What is the production time ?
A. Order quantity less than 100K, around 15 days to prepare .
15 to 25 days required if quantity over 100k.
Q. Are free samples provided ?
A. Yes, we would more love to help make testing before bulk order .
Q. What kind terms of payment accepted ?
A. T/T , Western Union PayPal , Alibaba Trade Assurance .Wechat etc.
Q. How to make sure quality under control ?
A. All products are 100% automatically tested before being shipped .
Q .How many shipping methods available ?
A.DHL TNT . Fedex, By Sea, By Air.
Q , Is OEM & OEM accepted ?
A, Yes, as longd as art drawing can be shared .
